SH-4(4CB200) model drum type clutch or brake main components:

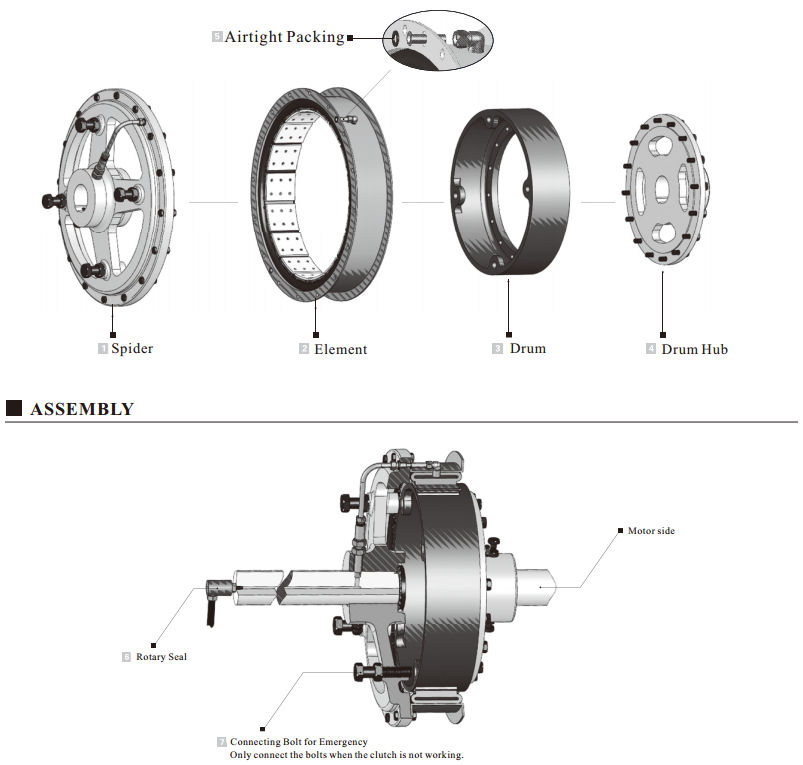

Spider, Element, Drum, Drumhub, Sealing ring.
Direction of above product application guide:
To select right clutch or brake size, should figure out R.P.M of using machine and H.P (Horse Power) including Safety Factor (Table 1). Then, first find out the R.P.M and nearest value to the H.P from the above guide.
Finally, choose the clutch or brake size of the top pf column.
Ex) in case of 400 H.P (including safety factor) x 500 R.P.M., find out 405H.P in 500 R.P.M line, then choose SH-22 size of the top of the column.
SH-4(4CB200) model drum type clutch or brake Advantage:
SH-4(4CB200) model drum type pneumatic clutch or brake is HAwers’ representative product. This SH type can be engaged with an inside drum by pneumatically actuated tube with linings. It can be applied to Clutches (power transmission) or Brakes (power braking).
SH-4(4CB200) model drum type clutch or brake application
Industries: Shearing, Press, Forming, Tester, etc.
Marines: Generator, Pump, Winch, etc.

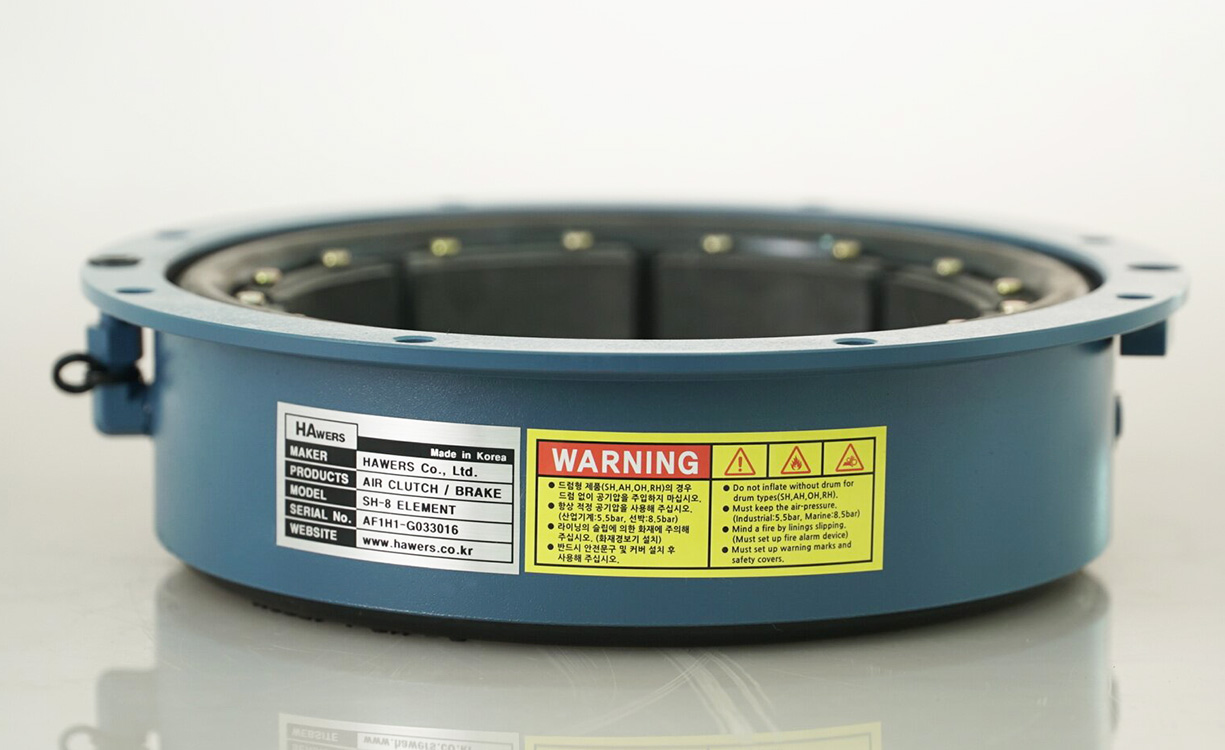

SH-4(4CB200) model Drum type pneumatic clutch or brake
SH model drum type pneumatic clutch or brake is equality with Eaton CB model constricting clutch or brake, installation size of them are the same. SH model drum type pneumatic clutch or brake can replace Eaton CB model constricting clutch or brake completely, SH-4 model is also named 4CB200. When you choose our air clutch or brake SH-4(4CB200), we will offer you the professional suggestion and solve the problem for you patiently. Quality, service, professional is our company long term philosophy, solve customers’ problem and meet customers’ satisfaction is our target.
Standard size/model:
SH-3（3CB150）, SH-4(4CB200), SH-4(4CB200), SH-6(6CB200),SH-8 (8CB250), SH-10(10CB300), SH-12(12CB350),SH-14(14CB400), SH-16(16CB500), SH-18(18CB500),SH-20(20CB500), SH-22(22CB500), SH-24(54CB500), SH-26(26CB525), SH-28(28CB525),SH-30(30CB525), SH-32(32CB525), SH-36(36CB525), SH-40(40CB525), SH-45(45CB525)

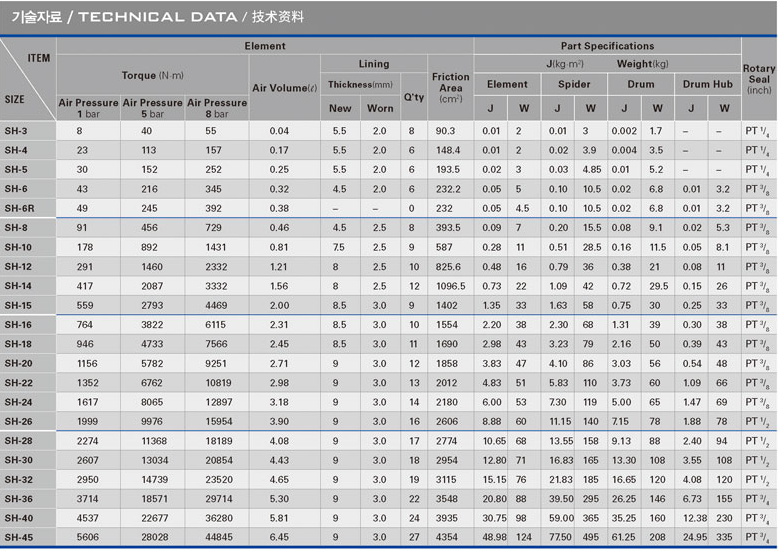

SH-4(4CB200) model drum type clutch or brake technical data:
SH-4(4CB200) model drum type clutch or brake structure:

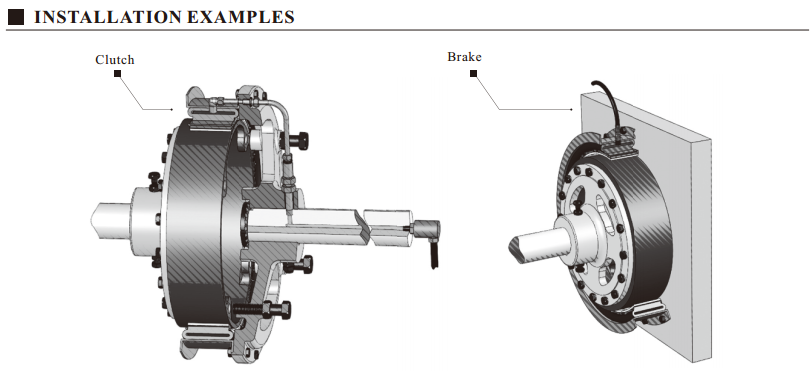

Installation mode:
