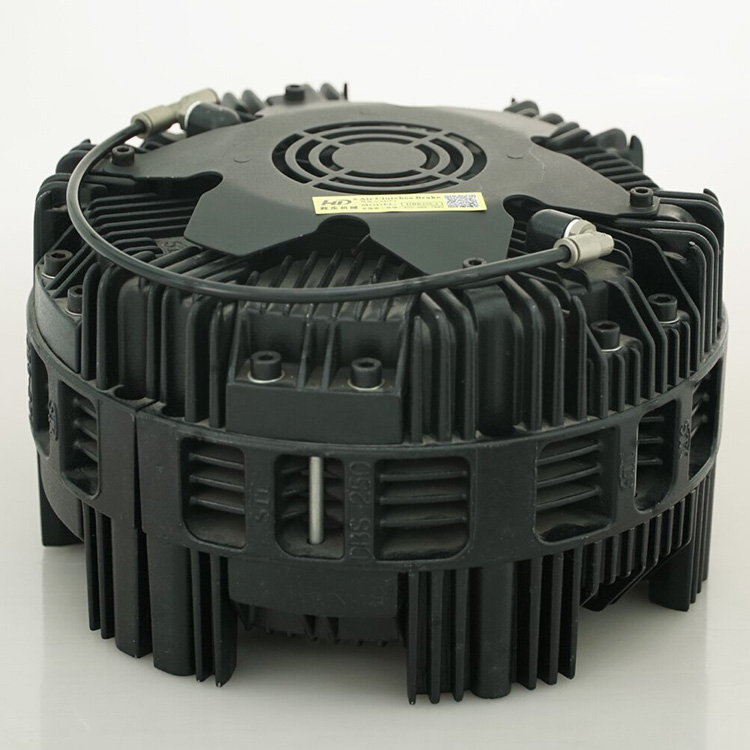

DBK/CX250 model air caliper disc brake
Each top of brake module has manual air pressure valve, with pushing forward the opening, pushing afterward the closing. If needed torque changes greatly, movement of brake module can be changed. This is a group caliper disc brake for one/two/three/four/five/six pieces and even larger with disc in it. It is widely used in printing and packing machine for tension control softly.
DBK/CX250 model air caliper disc brake Advantage:
The primary function of brakes is the conversion of mechanical energy into heat, which is then dissipated into the atmosphere. The amount of heat which can be dissipated by air cooled Disc Brakes are dependent on a high rotational speed, large disc diameter, and large radiant surface. With the addition of an electric fan fitted to the center of the housing, the best possible thermal power dissipation was achieved without high dependency on speed, and avoiding the need to increase the disc diameter in continuous slipping applications Suitable for high heat dissipation.
Each top of brake module has manual air pressure valve, with pushing forward the opening, pushing afterward the closing. If needed torque changes greatly, movement of brake module can be changed. This is a group caliper disc brake for one/two/three/four/five/six pieces and even larger with disc in it. It is widely used in printing and packing machine for tension control softly.
DBK/CX250 model air caliper disc brake Advantage:
The primary function of brakes is the conversion of mechanical energy into heat, which is then dissipated into the atmosphere. The amount of heat which can be dissipated by air cooled Disc Brakes are dependent on a high rotational speed, large disc diameter, and large radiant surface. With the addition of an electric fan fitted to the center of the housing, the best possible thermal power dissipation was achieved without high dependency on speed, and avoiding the need to increase the disc diameter in continuous slipping applications Suitable for high heat dissipation.
DBK/CX250 model air caliper disc brake characters:
1. Wide torque adjustment
It adopts modular design, and installed sets of module brakes are devised by real needs, in which torque control can reach larger limits.
2. Free of change
Installed sets of brake module can be changed freely even after installation. Brake module can conduct flexible installation and control, and with changing movements, torque control range can be larger.
3. Well heat dissipation
Whole ventilated structure ensures unblocked airflow. Pulley-structure brake disc greatly dissipates the heat generated from itself. It works better to add a cooling fan.
4. Simple installation
It has the characters of high torque and high accuracy, which can be used to various kinds of conditions, such as tension control, urgent brake and position control and etc.
5. Quick and convenient to change non-asbestos friction plate/lining.
DBK/CX250 model Air caliper disc brake
DBK model air caliper disc brake is composed of lining, piston, air chamber, fan cover, braking disc, fixed bolt, fixed frame and so on. This brake relies on air pressure to brake, return springs to release. After supplying air pressure, piston pushes friction plate moved towards to and compressed braking disc, producing resisting torque, until disc and other rotating parts stopped, brake linked. When exhausting air pressure, piston and friction plate back and separated with braking disc by return springs, brake released. Its response is sensitive, torque control precise. Piston sealing part is without oil. Lining thickness is 10mm, max abrasion 6mm. When lining abrasion reached to 6mm, using screwdriver to take out head inside screw through hole of disc with hub to replace lining. Our group air caliper disc brake DBK can replace RE made CX250 completely with high quality, ecomonic price and good after-sales service.
DBK/CX250 model air caliper disc brake description:
DBK model air caliper disc brake adjustment torque in large range via air pressure, it is suitable for urgent brake and tension control. Manual brake can keep long time braking through pressing springs for a ling time, torque is from 2-36500N.m.
DBK/CX250 model air caliper disc brake heat exchange:

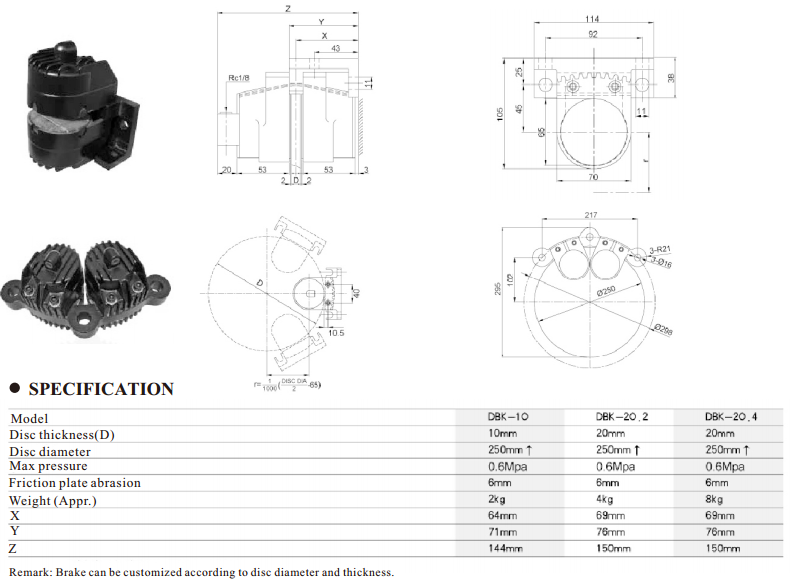

DBK/CX250 model air caliper disc brake technical data
DBK/CX250 model air caliper disc brake structure
