DBG model air caliper disc brake application:
This air caliper disc brake is widely used in all kinds of working machinery, packing and printing machinery, rubber tire machinery, wire machinery, paper making machinery, stretch-wire machinery, stranding machinery, winding machine, trimming shears machinery, unwind machine, orientation machinery, tension controller and etc.
DBG model air caliper disc brake through adjust air pressure, so as to adjust torque in a wide range, it is suitable for emergency brake and tension control. Using manual brake, pressure springs will keep long time braking without air pressure. Random adjustment springs quantity to adjust torque, it is from 2N.m to 36500N.m.

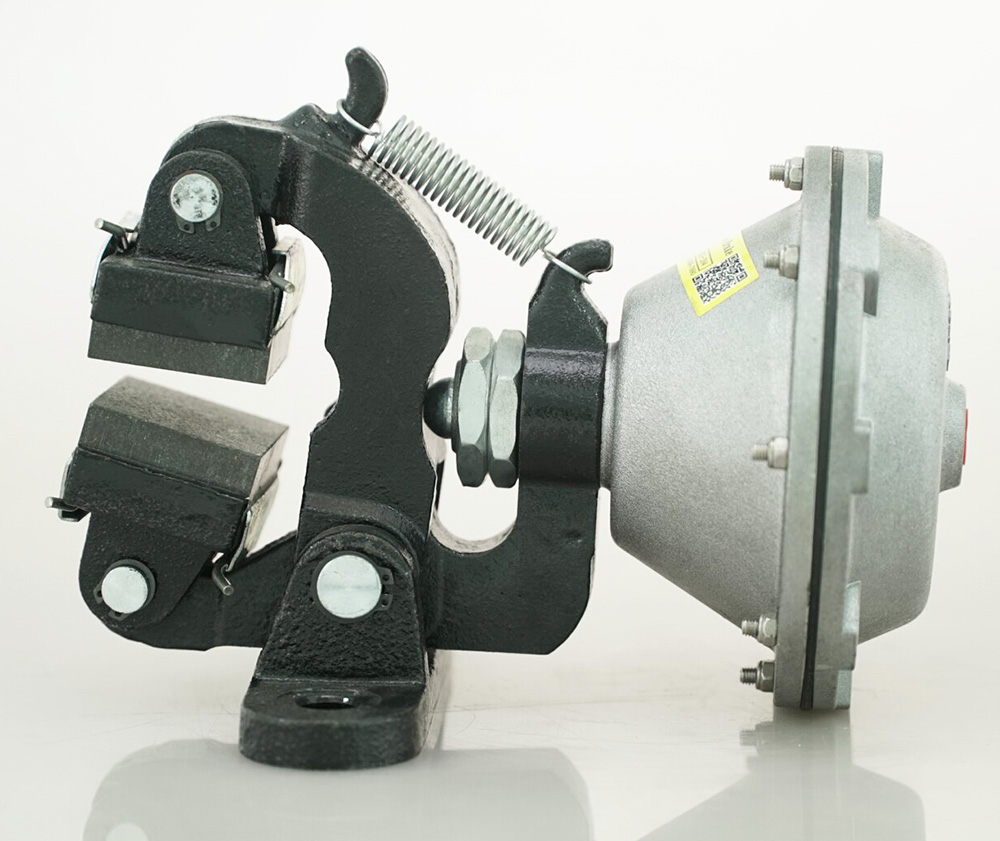

DBG model air caliper disc brake
Economic air caliper disc brake offers stable, effective and adjustable braking force. Vertical type installation, save space, open-type friction plate good for heat dissipation. Two-cut lining is easy for exchange, not contains asbestos, braking disc thickness 10-20mm available. Waterproof, dust-proof and heat resistance, can be frequent usage, function stable. Use air pressure as action resource, no electric spark, explosion-proof, safe and reliable. Braking force is adjustable, braking torque range is wide. Good dissipation, lining is wearable, two-cut type is easy for exchange. Regular brake model: DBG-103/104/105 DBG-203/204/205.
Description:
As a type of economical brake, it can provide stable and effective power of braking. The vertical installation can saves the space and the heat of rubbing surface can dissipate rapidly. The friction part is easy to replace, and it does not contain any asbestos, Brake-disc thickness covers from 10mm to 20mm. To control the deceleration of moving parts for small and medium powers, the best solution is the combination of a brake disc with one or more pneumatic calipers.
Air caliper disc brake technical data:
Product name: DBG model air caliper disc brake
Brand: HD
Model: DBG-104, DBG-204, DBG-105, DBG-205
Weight: 5-6 (kg)
Air pressure: 0.1 bar-6bar
Torque: 2-36500N.m

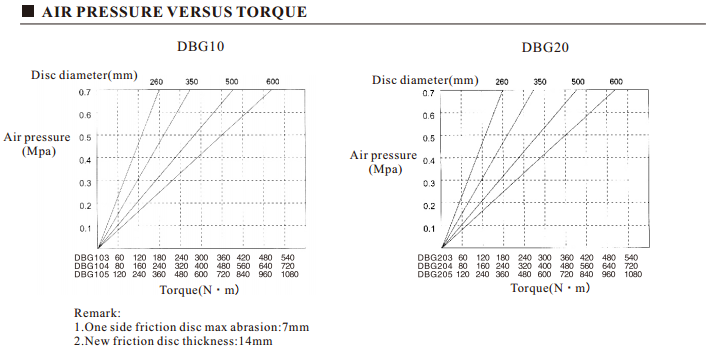

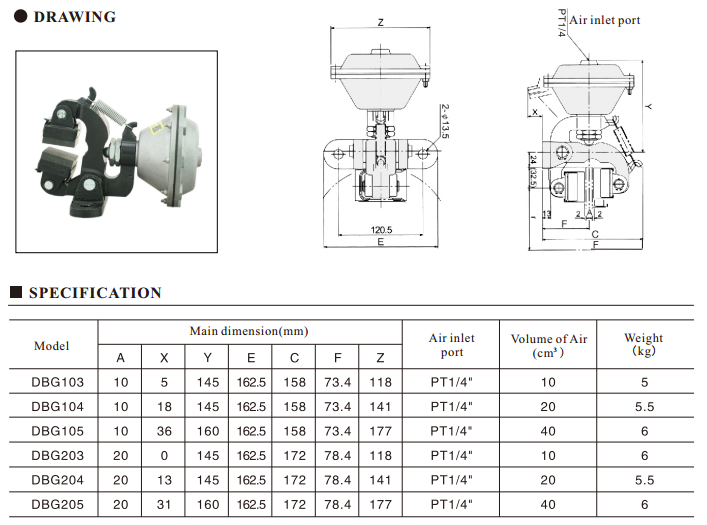

Drawing and specification:
